Choosing between on-grid and hybrid solar inverters represents one of the most critical decisions for solar EPCs and distributors serving the Indian market in 2026. This choice directly impacts your client’s return on investment, system reliability, and long-term satisfaction.
TL;DR
- On-grid is significantly cheaper: a 5 kW on-grid inverter costs ₹30,000-60,000, versus ₹75,000-1,50,000 for a 5 kW hybrid before batteries.
- A 5 kW residential on-grid system typically pays back in about 5.4 years; commercial systems with higher tariffs pay back in 3.5-4 years.
- Hybrid wins where outages exceed roughly 10 hours per month, net metering terms are weak, tariffs are time-of-use, or loads cannot tolerate any interruption.
- Lithium-ion batteries last 10-15 years with one replacement over a 25-year system life; lead-acid needs 5-6 replacements over the same span.
- Peak shaving with hybrid battery storage can cut commercial demand charges by 20-30%.
- Areas with fewer than 10 hours of monthly outages generally favour on-grid; heavier or evening-peak loads favour hybrid.
Understanding On-Grid and Hybrid Solar Inverter Technologies
On-Grid Inverters
On-grid (grid-tied) inverters convert DC from solar panels into AC synchronised with the utility grid. They operate only when the grid is active, feeding excess generation back through net metering arrangements. Modern on-grid inverters achieve up to 98% efficiency with advanced MPPT algorithms.
Hybrid Inverters
Hybrid inverters combine grid-tied functionality with integrated battery management. They can simultaneously manage solar input, battery charging/discharging, grid interaction, and load supply, switching modes based on programmed priorities. For a step-by-step approach to picking the right unit, see how to choose a hybrid solar inverter.

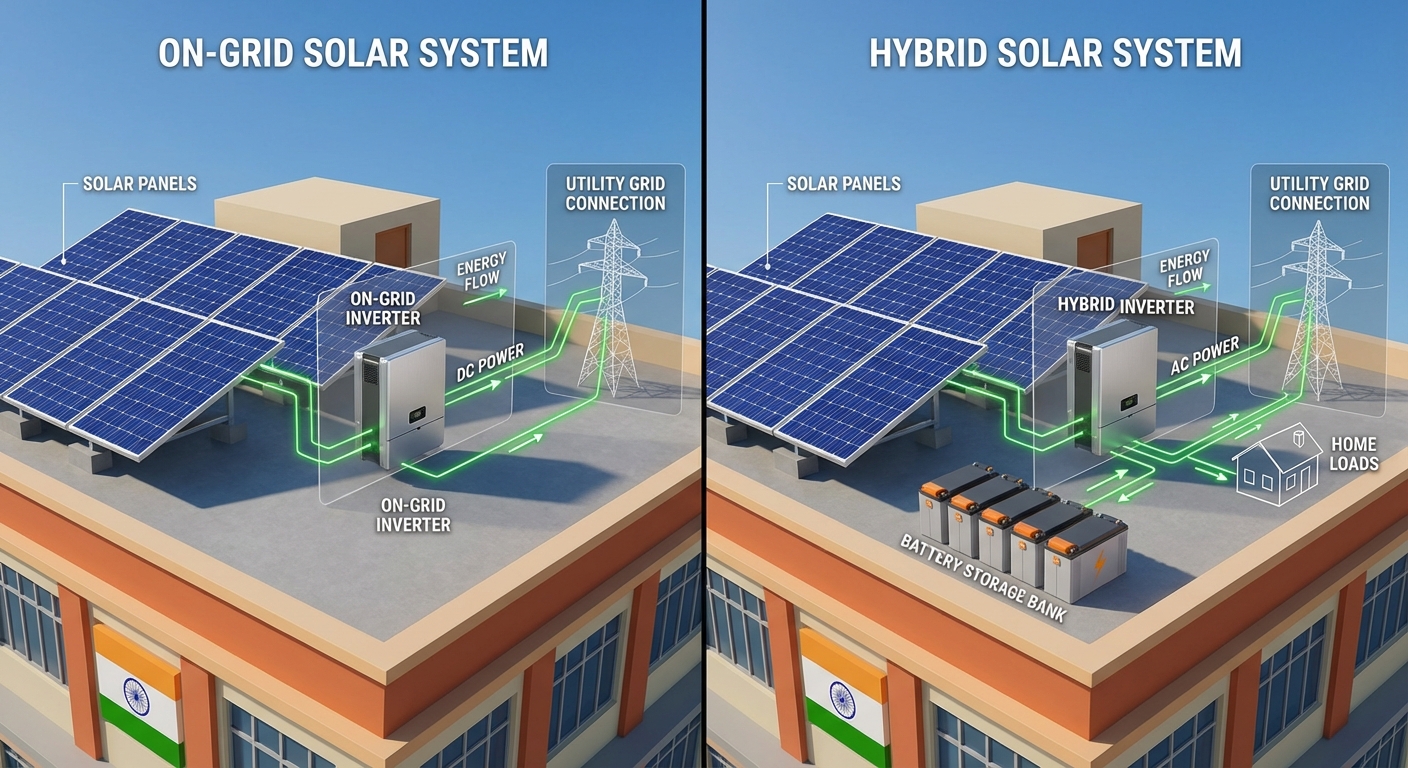

Architecture Differences
| Aspect | On-Grid | Hybrid |
|---|---|---|
| Conversion stages | Single-stage (DC→AC) | Dual-stage (DC→DC, DC↔AC bidirectional) |
| Battery support | None | Integrated BMS communication |
| Outage operation | Shuts down (anti-islanding) | Seamless switch to battery (<10 ms) |
| Operating modes | Grid-tied only | Grid-tied, battery backup, off-grid |
Upfront Cost Analysis: On-Grid vs Hybrid
On-Grid Inverter Pricing
| Segment | Price per kW |
|---|---|
| Residential (1–10 kW) | ₹6,000–₹12,000 |
| Commercial (10–100 kW) | ₹5,000–₹9,000 |
A standard 5 kW residential inverter alone costs ₹30,000–₹60,000.
Hybrid Inverter Pricing
| Component | Cost |
|---|---|
| Hybrid inverter (5 kW) | ₹75,000–₹1,50,000 |
| Lithium-ion battery (per kWh) | ₹12,000–₹18,000 |
| Lead-acid battery (per kWh) | ₹8,000–₹12,000 |
A typical 10 kWh lithium battery adds ₹1,20,000–₹1,80,000.
Total System Cost Comparison
5 kW residential installation:
| Configuration | Total cost |
|---|---|
| On-grid system | ₹2,50,000–₹3,00,000 |
| Hybrid (no batteries) | ₹2,90,000–₹3,50,000 |
| Hybrid + 10 kWh lithium | ₹4,10,000–₹5,30,000 |
50 kW commercial installation:
| Configuration | Total cost |
|---|---|
| On-grid system | ₹22,00,000–₹28,00,000 |
| Hybrid + 50 kWh storage | ₹32,00,000–₹42,00,000 |

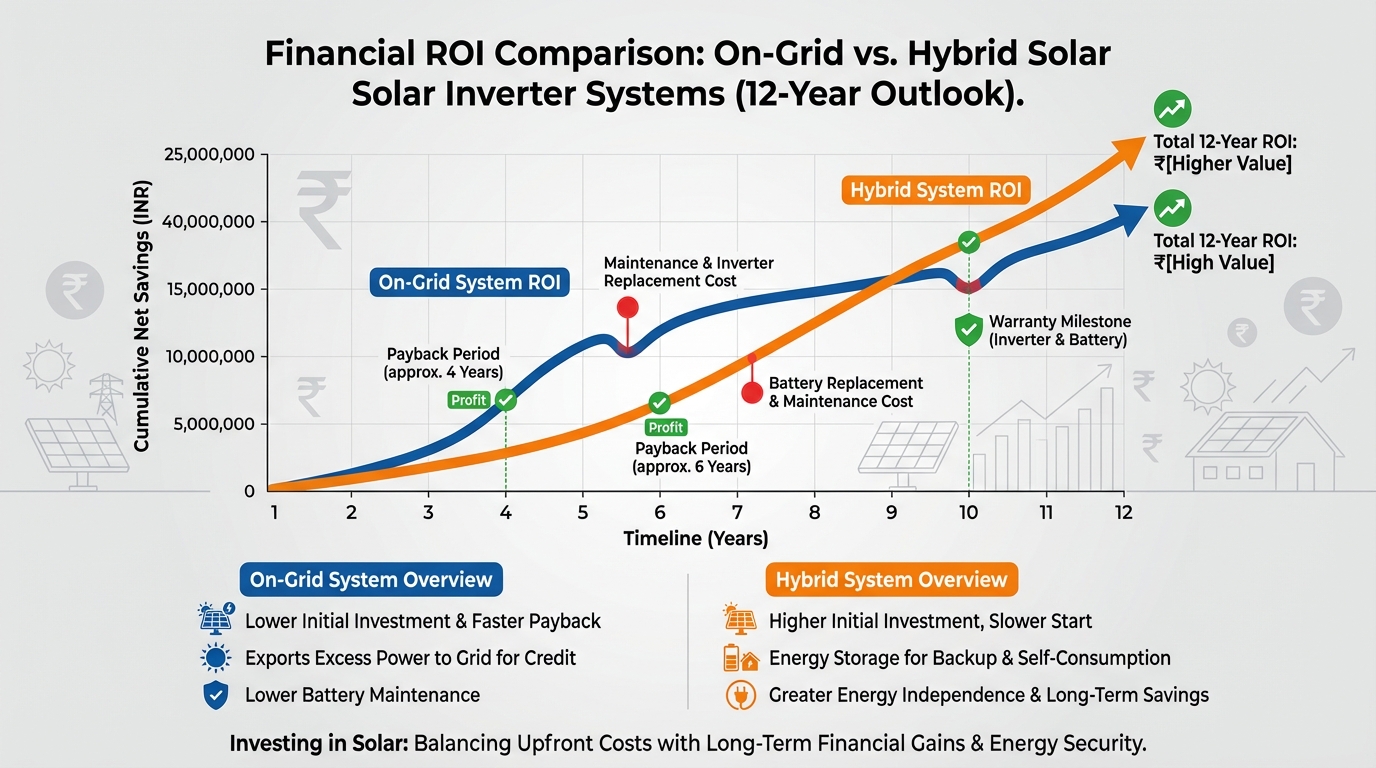

Long-Term ROI Comparison
On-Grid System ROI
A typical 5 kW residential on-grid system generating 20 units/day (7,300 units/year) at ₹7/unit saves ₹51,100 annually. At a system cost of ₹2,75,000, the simple payback period is approximately 5.4 years. Over 25 years, total savings exceed ₹12,75,000: an ROI of over 360%. For a state-by-state breakdown of how payback shifts with local tariffs, see solar inverter payback period in India.
Hybrid System ROI
The same 5 kW system configured as hybrid with 10 kWh battery storage costs ₹4,60,000. The additional financial benefits include:
- Backup power eliminating diesel generator costs (₹15–₹20 per generated unit)
- Time-of-use optimisation in TOU tariff regions
- Reduced grid dependency
For a 50 kW commercial installation with TOU tariffs, peak-shifting strategies deliver ₹1,50,000–₹2,00,000 additional savings annually.
Maintenance and Replacement Costs
| Item | On-grid | Hybrid |
|---|---|---|
| Annual maintenance | ₹3,000–₹5,000 | ₹5,000–₹8,000 |
| Battery replacements (25 yr life) | None | 1 (lithium) or 5–6 (lead-acid) |
| Lithium replacement cost | - | ₹1,20,000–₹1,80,000 |
Battery costs are expected to drop 30–40% by 2030.
Grid Dependency and Power Backup
On-Grid Limitations
When the grid goes down, on-grid inverters immediately shut down due to anti-islanding protection. In regions with frequent power cuts, businesses often rely on diesel generators at ₹15–₹20 per unit generated: spending ₹50,000–₹1,00,000 annually on backup.
Hybrid Backup Capabilities
Hybrid inverters seamlessly switch to battery backup in under 10 milliseconds. A 10 kWh battery system can power:
- Essential loads (refrigerator, fans, lights, internet): 4–6 hours
- Critical loads only: 8–12 hours
Regional Grid Stability
| Region | Grid quality | Recommended technology |
|---|---|---|
| Mumbai, Delhi, Bangalore | Stable | On-grid |
| Tier-2/3 cities, rural areas | Frequent outages | Hybrid |
| Coastal (Kerala, Goa, Odisha) | Cyclone risk | Hybrid + IP66 |
| UP, Bihar, parts of MP | Regular cuts | Hybrid |
| Gujarat, Karnataka, AP | Stable, good net metering | On-grid |
Battery Integration: Lithium vs Lead-Acid
Technology Comparison
For the full technical and cost breakdown between the two chemistries, see lithium vs lead-acid solar battery.
| Parameter | Lithium-ion | Lead-acid |
|---|---|---|
| Round-trip efficiency | 90–95% | 70–80% |
| Depth of discharge | 80–90% | ~50% |
| Lifespan | 10–15 years | 3–5 years |
| Temperature tolerance | Up to 45–50°C | Heat-sensitive |
Most Indian residential hybrid installs in 2026 use LFP batteries rather than older lead-acid banks, given their tolerance for daily cycling in Indian ambient temperatures.
Battery Capacity Planning
A household with 2 kW critical loads (refrigerator, fans, lights, internet) requires 8–12 kWh for evening and overnight backup at a reasonable cost. The exact figure depends on which loads are treated as critical - how to size a battery for a hybrid solar inverter walks through the calculation, and SurgePV’s battery sizing methodology covers the same fundamentals for EPCs proposing storage across multiple sites.
Self-Consumption Optimisation
A commercial facility generating peak solar at midday but consuming peak in the evening can store the midday surplus and discharge during the evening, maximising self-consumption and minimising grid dependence.
Ideal Use Cases: Residential
When On-Grid Wins
- Stable grid with minimal outages
- Favourable net metering (1:1 compensation)
- Budget-conscious homeowners
- High daytime consumption
Example: 5 kW on-grid for a Mumbai apartment. ₹2,75,000 system, ~5.4 year payback.
When Hybrid Wins
- Frequent power cuts
- Critical backup needs (home offices, medical equipment, security)
- Poor net metering terms
- Evening-peak consumption patterns
- Future-proofing for long-term residence
Example: 5 kW hybrid + 10 kWh battery for a Bangalore villa with 1–2 hours of daily cuts. ₹4,60,000 system eliminates diesel costs (~₹20,000/year saved).

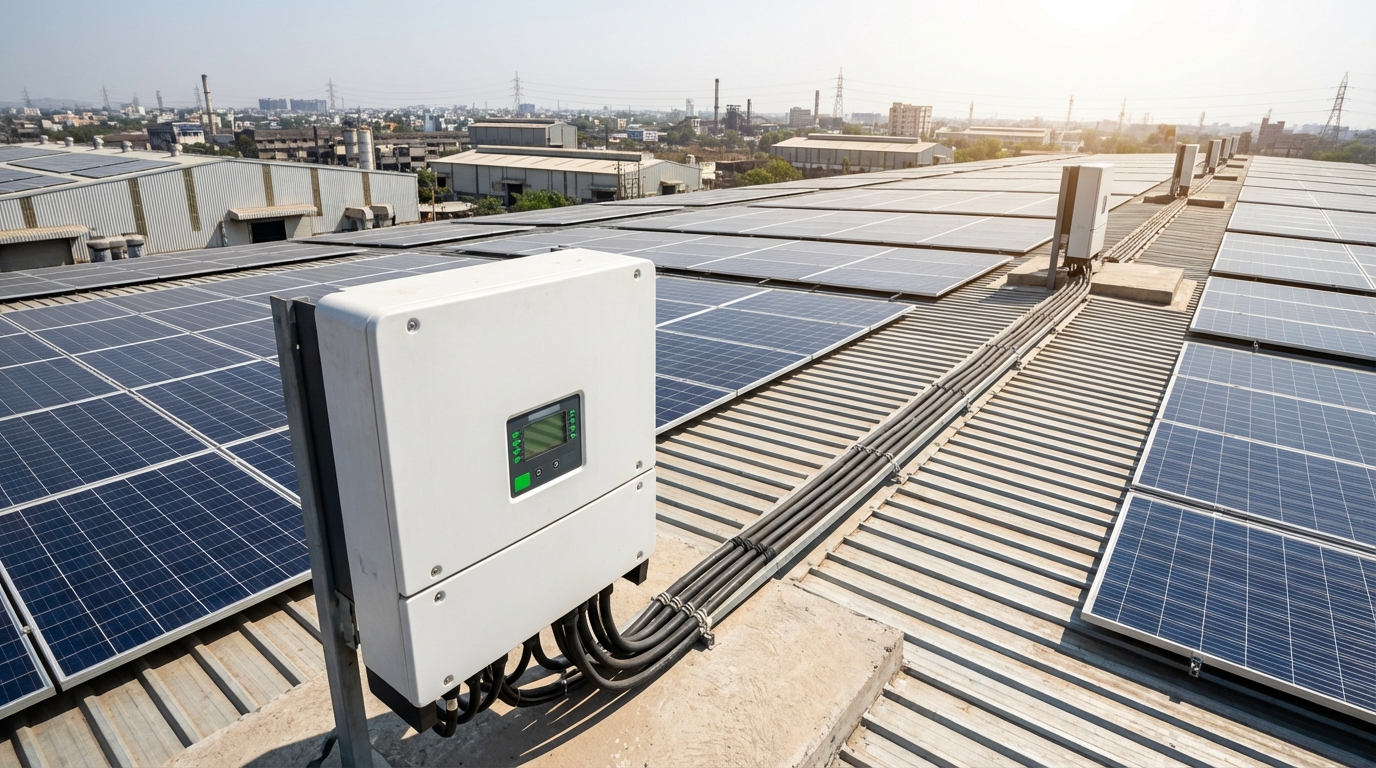

Ideal Use Cases: Commercial & Industrial
When On-Grid Wins
- Stable industrial-park grid
- Daytime-only operations
- Large-scale (above 100 kW)
- Open-access power agreements
Example: 100 kW on-grid for a manufacturing facility. ₹45,00,000 system generates 1,50,000 units/year, saves ₹12,00,000/year at ₹8/unit - 3.75-year payback. Industrial EPCs sizing similar projects can reference Heaven Green Energy’s industrial solar installation framework for turnkey execution on facilities at this scale.
When Hybrid Wins
- Critical operations: data centres, hospitals, cold storage
- Demand-charge optimisation: peak shaving cuts demand charges 20–30%
- Grid instability with frequent outages
- 24/7 operations
- Diesel generator replacement
Example: 50 kW hybrid + 100 kWh storage for a hospital. ₹42,00,000 system eliminates diesel (₹3,00,000/year) and cuts demand charges (₹1,50,000/year), combined savings of ₹4,50,000/year, payback under 10 years.
Demand Charge Management
Demand charges are 30–50% of commercial bills in India, based on the highest 15-minute average power demand in the billing period.
Peak shaving with battery storage can reduce demand charges by 20–30%. For a 200 kW facility paying ₹400/kVA monthly, reducing peak demand by 50 kW saves ₹20,000/month or ₹2,40,000/year.
Technical Performance Comparison
Efficiency
| Type | Peak efficiency |
|---|---|
| On-grid | 97–98% |
| Hybrid | 95–97% |
Over 25 years on a 5 kW system, a 1% efficiency difference equals 1,825 units of lost generation worth ~₹12,775.
DC Oversizing
Modern inverters supporting up to 100% DC oversizing let EPCs install up to 2× the inverter’s rated AC capacity in panels, boosting annual generation by 10–15%.
Monitoring and Smart Features
- Multi-channel connectivity (Wi-Fi, 4G, Bluetooth)
- Real-time generation, historical trends, fault alerts
- AI-powered analysis for predictive maintenance
- WhatsApp alerts: near-universal adoption in India makes this the dominant business channel
Weather Protection
IP66 weather protection: complete dust ingress protection and protection against powerful water jets, is the gold standard for rooftop installations and critical for surviving Indian monsoons.
German-grade electronic components and integrated DC/AC SPDs prevent the kind of failures that lead to ₹50,000–₹1,50,000 mid-life replacements.
Decision Framework for EPCs
Step 1: Assess Grid Reliability
Request outage frequency and duration data. Areas with fewer than 10 hours of monthly outages generally favour on-grid systems.
Step 2: Identify Critical Loads
If critical loads exceed 30% of total consumption or backup needs exceed 4 hours daily, hybrid delivers clear value.
Step 3: Analyse Consumption Patterns
Review 12 months of bills. High daytime consumption (>60%) favours on-grid; evening-heavy consumption favours storage.
Step 4: Evaluate Tariff Structure
- Favourable net metering (1:1) reduces battery value
- Poor net metering or high demand charges increase hybrid value
- TOU tariffs strongly favour hybrid
Step 5: Calculate Financial Scenarios
Build NPV and IRR models for both options including upfront costs, savings, maintenance, replacement, and warranty coverage. SurgePV’s generation and financial modelling tool automates this comparison for EPCs quoting both configurations side by side.
Step 6: Consider Future-Proofing
Clients planning long-term ownership or concerned about grid instability often value hybrid flexibility, and many hybrid inverters allow battery addition later.
Conclusion: Matching Technology to the Project
On-grid systems deliver unmatched simplicity, lowest upfront cost, and fastest payback in stable-grid regions with favourable net metering. Hybrid inverters command premium pricing but deliver superior value in grid-unstable regions, for clients with critical backup requirements, and where demand-charge management or time-of-use optimisation justifies the investment.
Quality matters in both categories. Inverters with 12-year warranties, IP66 weather protection, AI-powered monitoring, and German-grade components deliver superior long-term value over a 25-year system life.
For a broader look at where off-grid inverters fit alongside these two configurations, read on-grid vs hybrid vs off-grid inverters: the 2026 decision guide. A shorter side-by-side summary is also available at on-grid vs hybrid inverter: which should you actually buy?
