Solar inverter overheating is a critical challenge for Indian installations. When rooftop temperatures exceed 45°C during summer, inverters face thermal stress causing efficiency losses up to 25%, protective shutdowns, and a shortened lifespan. Understanding thermal management protects ROI and ensures consistent energy production.
TL;DR
- Internal temperatures above 60–65°C trigger derating (1–2% output loss per degree); above 75–85°C the inverter shuts down for 15–30+ minutes.
- Root causes are excessive ambient heat, poor clearance, dust-clogged ventilation, DC oversizing, weak components, and direct sun exposure raising surface temperature 20–30°C above ambient.
- Every 10°C above design temperature halves component lifespan, a 15-year-rated inverter running at 65°C may deliver only 7–8 years.
- Prevention costs ₹15,000–25,000 for shade structures and cooling upgrades, against ₹1–2 lakhs a year in losses, a payback under one year.
- Look for a 50°C+ ambient rating, a documented thermal derating curve, and IP66 protection when selecting an inverter for Indian rooftops; Qbits backs its thermal design with a 12-year full replacement warranty.
Understanding Solar Inverter Overheating in Indian Conditions
Overheating occurs when internal temperatures exceed design operating ranges, forcing power reduction (derating) or complete shutdown. India’s unique challenges include:
- 45–50°C rooftop ambient temperatures, rising to 60–70°C on surfaces
- Intense direct sunlight
- High humidity during monsoon
- Dust clogging cooling fins and ventilation openings
Thermal stress degrades components prematurely, reducing the expected 10–15 year lifespan to 5–7 years in poorly managed installations, a gap explored further in the solar inverter lifespan planning guide.
What Causes Inverter Overheating?
Excessive Ambient Temperature
Most inverters are designed for 40–45°C maximum ambient. Indian rooftops routinely exceed this in summer.
Poor Ventilation and Installation Location
Inadequate clearance (minimum 30–50 cm required on all sides), enclosed spaces, and restricted airflow prevent heat dissipation.
Dust Accumulation
Dust reduces cooling capacity by 30–40% within 3–6 months without cleaning.
Overloading and Excessive DC Oversizing
Operating beyond rated capacity raises internal heat generation significantly. The inverter clipping guide covers how aggressive DC oversizing compounds this heat load on top of ordinary summer thermal stress.
Component Quality Limitations
Lower-grade capacitors and inadequate heat sinks accelerate thermal degradation.

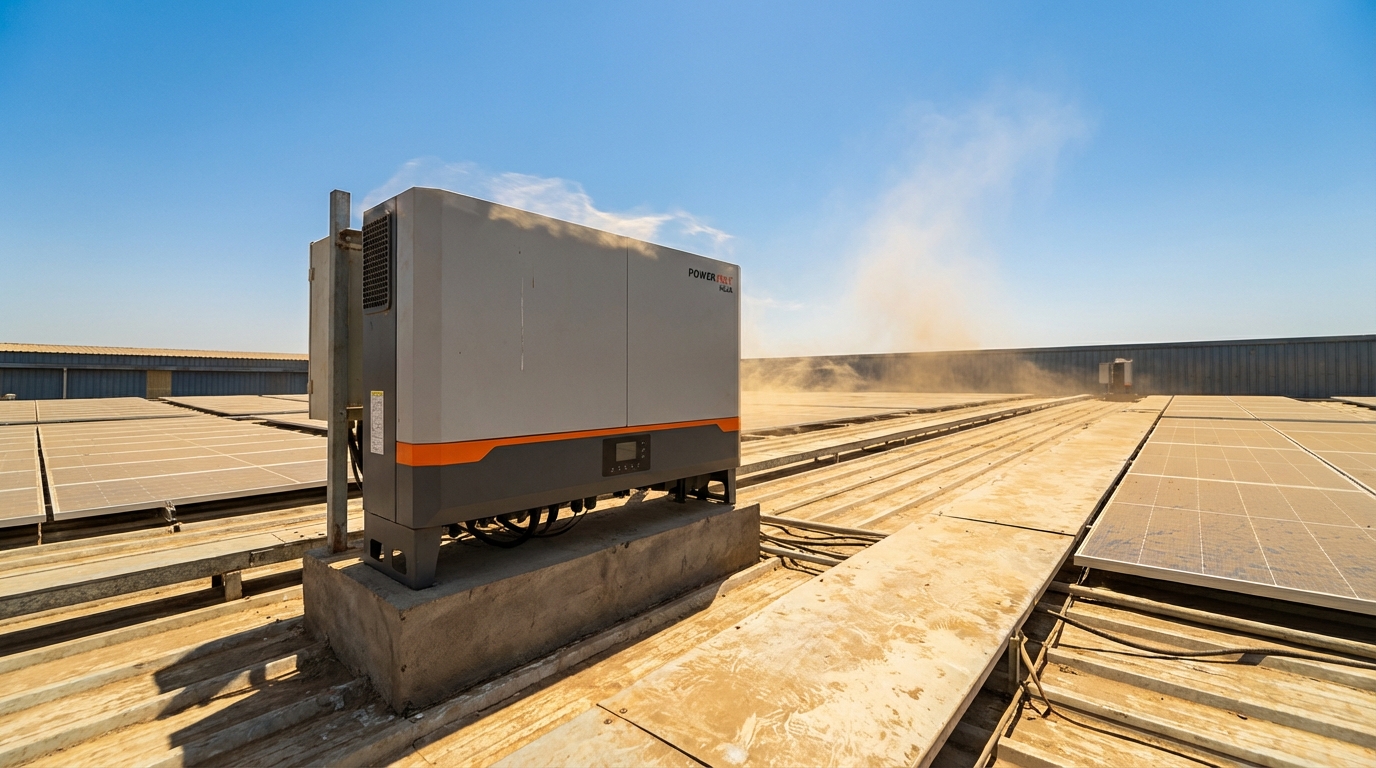

Direct Sunlight Exposure
Unshaded inverters absorb radiant heat, raising surface temperatures 20–30°C above ambient.
Critical Temperature Thresholds
| Temperature range | What happens |
|---|---|
| 25–50°C | Normal operation, full rated power |
| 50–60°C | Derating begins (1–2% per °C above threshold) |
| 75–85°C+ | Thermal shutdown, 15–30 min recovery |
| 20–35°C | Optimal operating range |
Visual and Audible Warning Signs
- Excessive fan noise
- Enclosure too hot to touch (>50–55°C)
- Frequent temperature-related error codes
- Reduced power output during peak hours
- Intermittent shutdowns during hot afternoons
- Discolouration or burning smell

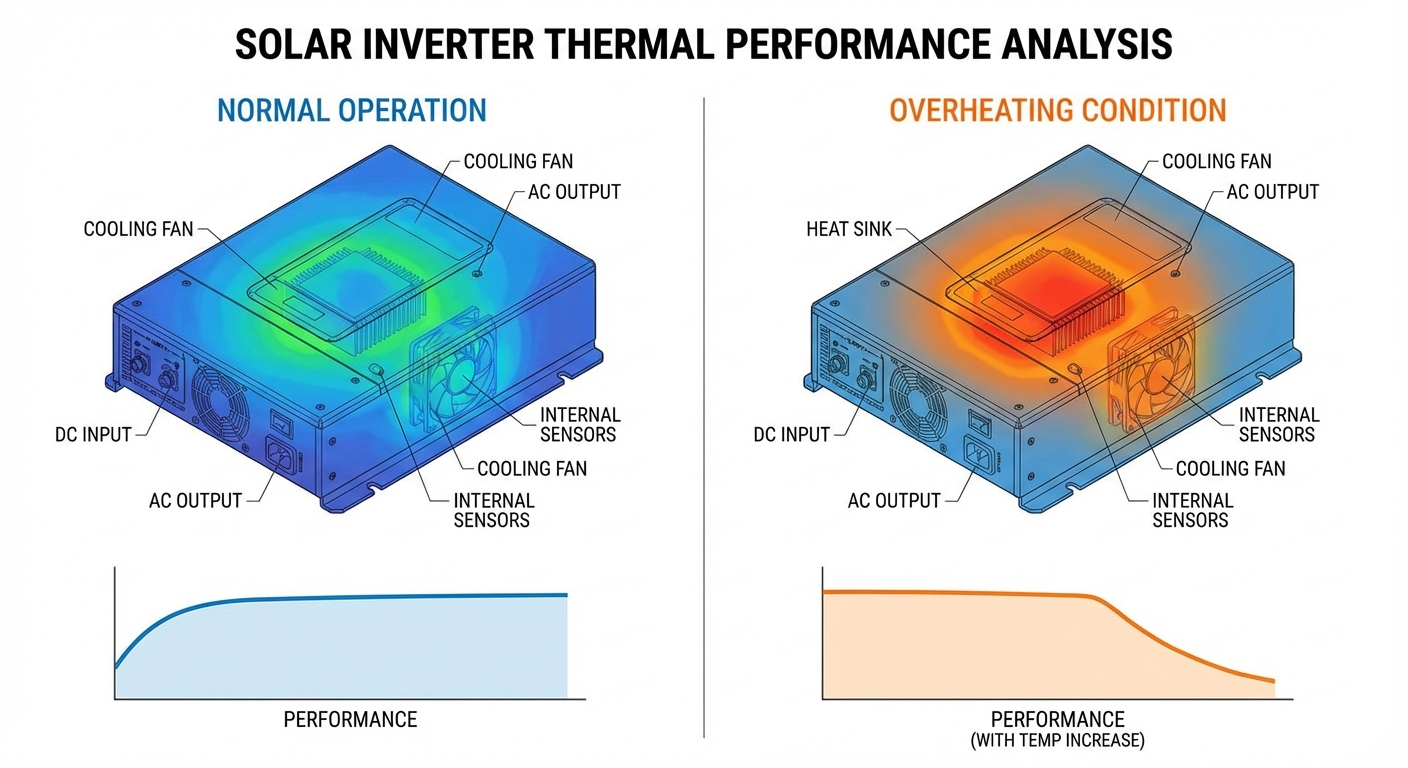

How Overheating Impacts System Performance
Power Derating and Efficiency Losses
A 100 kW system with 20% derating for 3–4 hours daily loses 15,000–20,000 kWh annually: equivalent to ₹1.05–1.8 lakhs in lost revenue.
Efficiency decreases 0.3–0.5% per 10°C temperature increase. A 98% efficient unit at 25°C operates at 96–96.5% at 65°C.
Reduced Inverter Lifespan
Every 10°C rise above design temperature halves component lifespan. A 15-year-rated inverter operating at 65°C delivers only 7–8 years of service.
Increased Failure Rates
Chronically overheated systems show 3–4× higher failure rates, the failure modes behind those numbers are catalogued in the solar inverter failure guide.
Financial Impact
Poor thermal management reduces lifetime production by 8–12%, equating to ₹25–40 lakhs lost over 25 years on a 500 kW C&I solar system, the scale at which thermal design choices compound fastest. Commercial developers running these numbers during design typically model derated output with a solar simulation tool before finalising inverter placement.
Safety Risks
Extreme overheating risks component failure, electrical arcing, smoke, or fire.
Prevention: Installation Best Practices
Location Selection
- Prefer: shaded areas, north-facing walls, under stairwells, beneath shade structures
- Avoid: enclosed spaces, metal enclosures, near heat-generating equipment
Factory floors are the toughest case for this rule, inverters on an industrial solar installation sit near compressors, welding equipment, and VFDs that all add ambient heat on top of the rooftop temperature itself.
Ventilation Clearances
- Minimum 30–50 cm clearance on all sides
- 50–75 cm spacing between multiple units for natural convection
Shade Structures
A shade canopy 30–40 cm above the inverter reduces surface temperatures by 15–20°C while maintaining airflow. Avoid solid enclosures.
Orientation
North- or east-facing preferred, minimises direct sun during peak heat hours (11 AM–4 PM). For new installations, this placement decision is best made at the detailed engineering design stage rather than adjusted after the inverter is already mounted.
IP66 Weather Protection
IP66 provides full dust and water-jet protection while maintaining cooling. Lower IP ratings often need enclosures that compromise cooling.

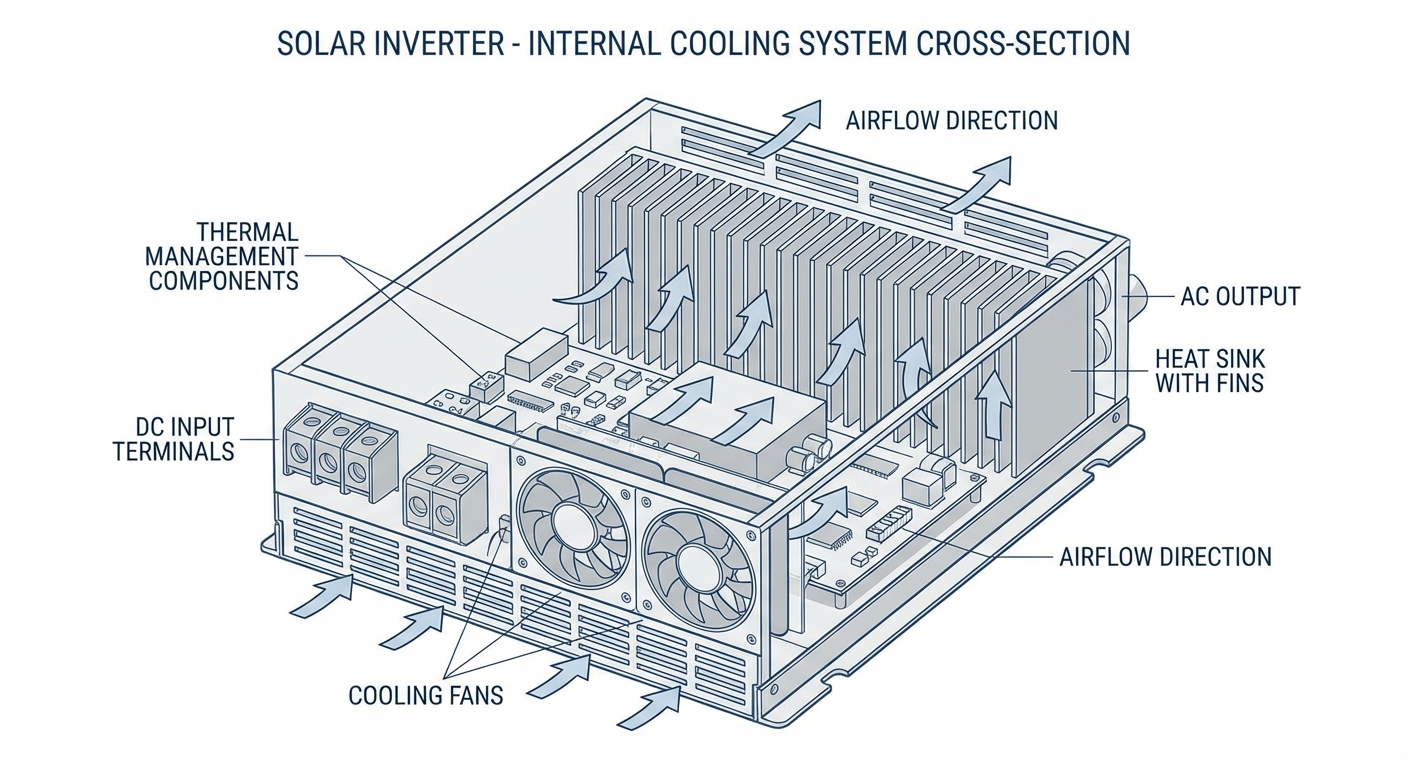

Cooling Solutions
Passive Cooling
- Oversized aluminium heat sinks with optimised fins
- High-quality thermal interface materials between components and sinks
Active Cooling
- Temperature-controlled fans activate only when needed
- Long-life, dust-resistant fan designs for harsh environments
Maintenance Requirements
- Quarterly: clean dust from sinks, grilles, fans
- Monthly: inspections in dusty environments
- Verify clearances and check fan operation
Cost-Benefit
A ₹15,000–25,000 investment in shade structures and cooling improvements prevents ₹1–2 lakhs in annual losses, payback under one year.
Selecting Inverters with Superior Thermal Management
| Specification to check | Why it matters |
|---|---|
| Maximum ambient operating temperature (50°C+) | India’s rooftops demand it |
| Thermal derating curve | Predicts hot-day performance |
| Cooling system design | Heat sink and fan quality drives longevity |
| Operating altitude rating | Critical for hill stations |
| Temperature coefficient | Lower is better |
Qbits Thermal Features
- Advanced thermal design with oversized heat sinks
- German-grade electronic components
- IP66 weather protection
- AI-powered temperature monitoring with WhatsApp alerts
- 98% efficiency (minimises waste heat)
- Intelligent thermal management algorithms
Warranty Protection
Qbits offers a 12-year full replacement warranty covering thermal failures under normal operation, demonstrating confidence in the design, the broader case for that warranty length is made in the honest truth about solar inverter warranty in India.
Monitoring and Maintenance
Real-Time Temperature Monitoring
Continuous tracking displays temperature alongside power output, revealing thermal trends before acute problems develop, a capability compared across platforms in the solar inverter monitoring systems in India guide.
AI-Powered WhatsApp Alerts
AI learns normal patterns; deviations trigger preventive alerts via WhatsApp, the dominant business channel in India.
Recommended Maintenance Schedule
| Frequency | Activity |
|---|---|
| Monthly | Visual inspection |
| Quarterly | Cleaning of dust, heat sinks, fans |
| Semi-annual | Detailed inspection |
| Annual | Comprehensive service |
Increase frequency in dusty or industrial environments. This cadence slots directly into the broader inverter maintenance India protocol, which covers cleaning, warranty compliance, and cost benchmarks beyond thermal management alone.
Remote Diagnostics
- Sudden temperature spikes → cooling failure
- Gradual increases → dust accumulation
- Correlation with power output → overloading
Preventive Maintenance Checklist (17 points)
Clearance verification, shade-structure inspection, heat sink cleaning, fan testing, seal checking, log review, sensor verification, metric documentation, photographic records, error log analysis, firmware check, vibration check, cable inspection, SPD inspection, ventilation airflow test, IP rating revalidation, and annual thermal imaging scan.
Bottom Line
Selecting an inverter rated for Indian conditions - 50°C+ ambient, IP66, German-grade components, comprehensive thermal warranty, and intelligent monitoring: combined with proper installation and quarterly cleaning, eliminates the vast majority of overheating-related downtime.
Frequently Asked Questions
What temperature is considered overheating for a solar inverter?
How much does overheating reduce solar system output?
What clearance space is required around an inverter?
How often should I clean an inverter?
Does overheating void my inverter warranty?
